3-10 Tons of Ice Per 24hr

vogt

Automatic ICE™ Systems uses Vogt® HFO5 and HFO-10 series ice machines in our medium capacity, 3-10 ton per day, ice-making systems.

Click HERE to learn about The Vogt® Advantage


The Future of Ice Machine Controls:
Vogt® Ice Controls Engineer Baptiste Sauvage previews Vogt’s® new ice machine controls.


The HFO3 Series Tube-Ice® Machine
HFO3-1” & HFO3-1 1/4”

HF03
industry logos nsf

CONTACT A SALES REPRESENTATIVE
phone: (800) 325-3667
email: [email protected]

The HFO3 Series Tube-Ice® machine continues the Vogt® tradition of providing long-lasting machine reliability, delivered capacity, and lower energy cost solutions. This 3-ton of ice per day machine utilizes HFO refrigerants with low GWP and zero ODP. Available as a self-contained water-cooled unit or air-cooled remote, the HFO3 will provide you with years of dependable service without the fear of refrigerant obsolescence.

Heavy-duty industrial construction, automatic operation, energy efficiency, and the best warranty in the business make the Vogt HFO3 Series the only “clear” choice for your ice-making needs.

HFO3 Standard Features:

  • 25 Year Evaporator Warranty
  • R513A Refrigerant
  • Allen-Bradley PLC with thermocouples, pressure transducers, and multiple built-in safeties
  • 10.1” wide HMI display with remote access capability* Water-cooled or remote air-cooled operation
  • Export crating (ISPM-15 Rated)
  • Electronic Ice bin thermostat
  • Voltage – 208/230v.,3p.,60hz.

*Requires connection to Internet (ethernet connection)

HFO5 Series Options:
• Voltage – 460v.,3p.,60hz.
• Voltage – 400v.,3p.,50hz.
• Voltage – 200v.,3p.,50hz. or 230v.,3p.,50hz.
• Voltage – 575v.,3p.,60hz.
• High ambient air-cooled condenser
• Electro-fin coated condenser
• Condenser for sea water
• Dual Ice Feature (cylinder and crushed ice)
• Cutter for 1-1/2” long ice
• Stainless steel casings
• Power monitor (for 60hz.)
• “CE” Approval (400v, 50hz only)
• Canadian Registration Number (CRN)
• Export crating (ISPM-15 Rated)

HF03 HDMI

HFO3 Tube-Ice® Available in Two Ice Sizes:

HF03 TubeIceSizes
  • Tube-Ice approximately 7/8″ Diameter x 3/4″ Long
  • Tube-Ice approximately 1 1/8″ Diameter x 1″ Long

Download Service Info HERE

Download Spec Sheet HERE

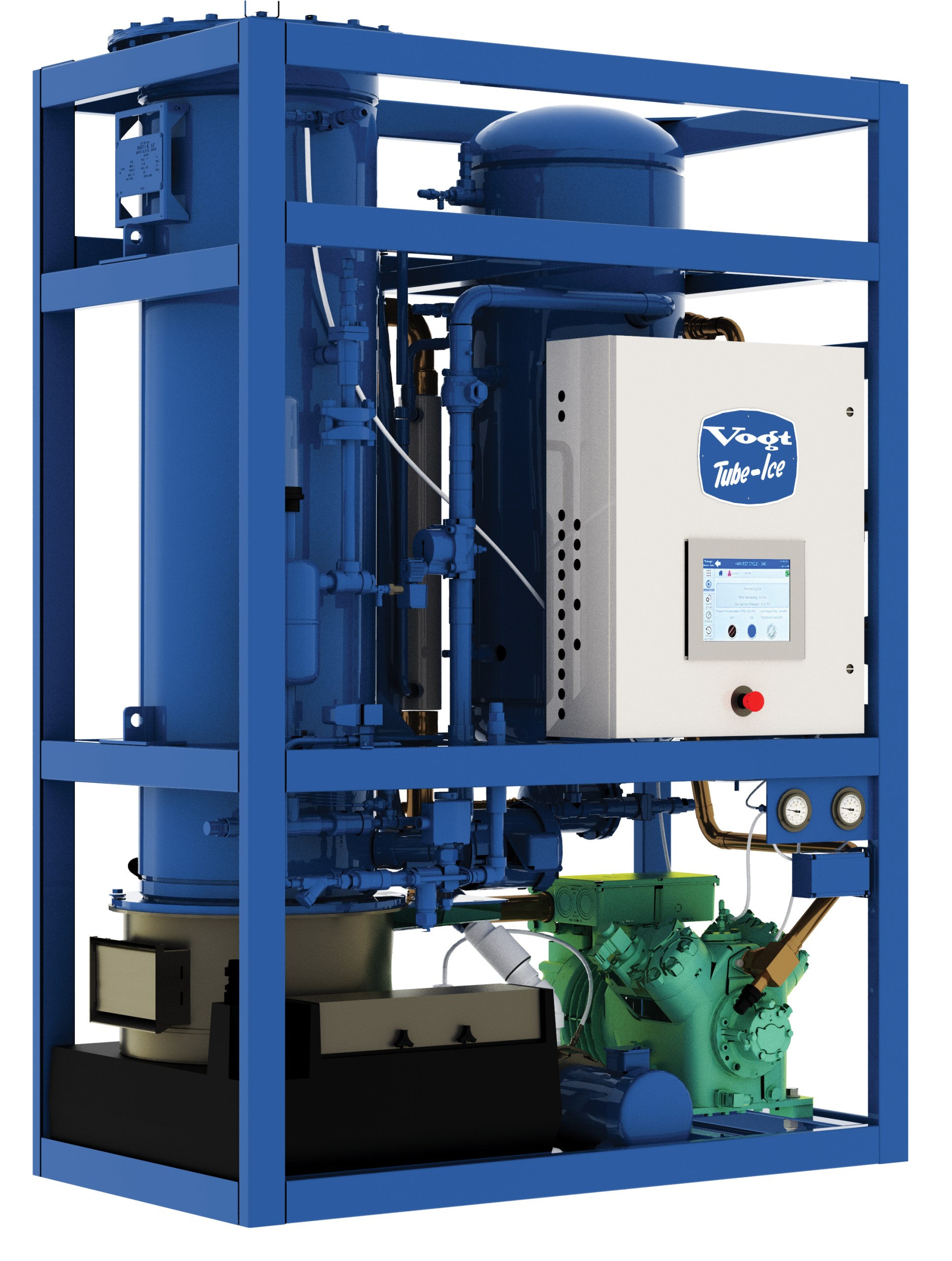

The HFO5 Series Tube-Ice® Machine
HFO5-1” , HFO5-1 1/4” & HFO5-1 1/2”

HFO5 Series Tube-Ice Machine
industry logos nsf

CONTACT A SALES REPRESENTATIVE
phone: (800) 325-3667
email: [email protected]

Replacing the Vogt® P112F Series, the HFO5 Series Tube-Ice® machine continues the Vogt® tradition of providing long-lasting machine reliability, delivered capacity, and lower energy cost solutions. This 5 tons of ice per day machine utilizes HFO refrigerants with low GWP and zero ODP.

Available as a self-contained water-cooled unit or air-cooled remote, the HFO5 will provide you with years of dependable service without the fear of refrigerant obsolescence.

Heavy-duty industrial construction, automatic operation, energy efficiency, and the best warranty in the business make the Vogt® HFO5 Series the only “clear” choice for your ice-making needs.

HFO5 Standard Features:

  • 25 Year Evaporator Warranty
  • R513A Refrigerant
  • Allen-Bradley PLC with thermocouples, pressure transducers, and multiple built-in safeties
  • 10.1” wide HMI display with remote access capability* Water-cooled or remote air-cooled operation
  • Export crating (ISPM-15 Rated)
  • Electronic Ice bin thermostat
  • Voltage – 208/230v.,3p.,60hz.

    *Requires connection to Internet (ethernet connection)

HFO5 Series Options:
• Voltage – 460v.,3p.,60hz.
• Voltage – 400v.,3p.,50hz.
• Condenser for sea water
• Stainless steel casings
• “CE” Approval (400v, 50hz only)
• Canadian Registration Number (CRN)
• Australian Wiring Code
• Dual Ice Feature (cylinder and crushed ice)
• Cutter for 1-1/2″ long ice
• Cutter for crushed ice operation

Download Spec Sheet HERE

HFO5 Tube-Ice® Available in Three Ice Sizes:

HFO5 Icesizes
  • Tube-Ice approximately 7/8″ Diameter x 1″ Long
  • Tube-Ice approximately 1 1/8″ Diameter x 1″ Long
  • Tube-Ice approximately 1 3/8″ Diameter x 1″ Long

Download Service Info HERE

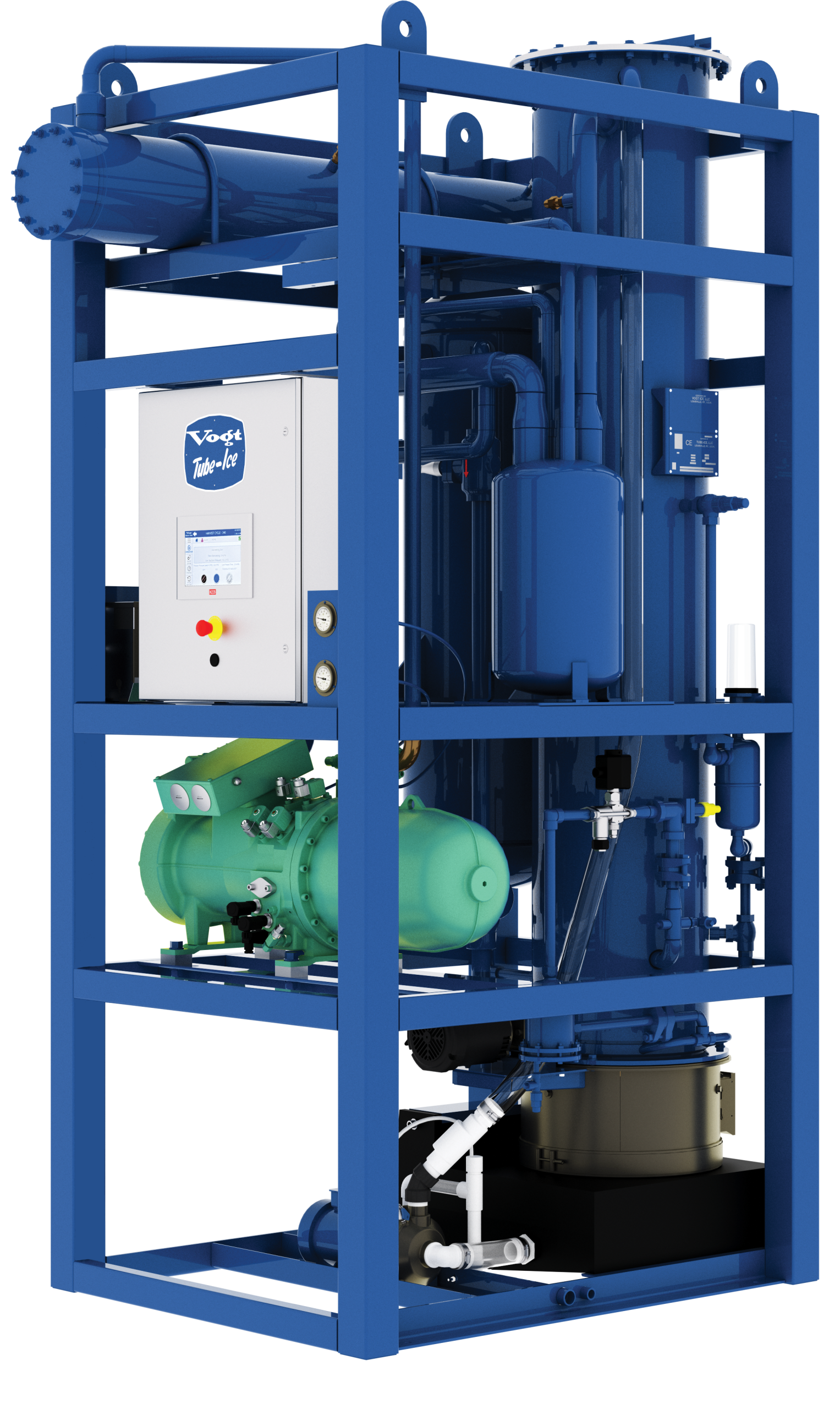

The HFO10 Series Tube-Ice® Machine
HFO10-1” , HFO10-1 1/4” & HFO10-1 1/2”

HFO10 Series Tube-Ice Machine
industry logos nsf

CONTACT A SALES REPRESENTATIVE
phone: (800) 325-3667
email: [email protected]

Replacing the Vogt® P118F and P18XT Series models, the HFO10 Series with a capacity of 10 tons of ice per day is Vogt’s® new champion of the mid-size Tube-Ice® machine line utilizing HFO refrigerants with low GDP and low ODP. Available as a self-contained water-cooled unit, the HFO10 will provide you with years of dependable service without the fear of refrigerant obsolescence.

Heavy-duty industrial construction, automatic operation, energy efficiency, and the best warranty in the business make the Vogt HFO10 Series the only “clear” choice for your ice-making needs.

HFO10 Standard Features:

  • 25-Year Evaporator Warranty
  • 3-Year Domestic U.S. Parts Warranty (Includes compressor)
  • Voltage – 208/230v.,3p.,60hz.
  • HFO Refrigerant (40+ year refrigerant)
  • Highly efficient, reliable Bitzer screw compressor
  • Water-cooled operation
  • Export crating (ISPM-15 Rated)
  • Power monitor on 50hz units

HFO10 Series Options:
• Voltage – 460v.,3p.,60hz.
• Voltage – 400v.,3p.,50hz.
• Electro-fin coated condenser
• Condenser for sea water
• PLC Control panel (programmable logic controller)
• Cutter for 1-1/2” long ice
• Stainless steel casings
• Remote switch box
• Power monitor (for 60hz.)
• “CE” Approval (400v, 50hz only)
• Canadian Registration Number (CRN)

Download Spec Sheet HERE

HFO10 Tube-Ice® Available in Three Ice Sizes:

HFO5 Icesizes
  • Tube-Ice approximately 7/8″ Diameter x 1″ Long
  • Tube-Ice approximately 1 1/8″ Diameter x 1″ Long
  • Tube-Ice approximately 1 3/8″ Diameter x 1″ Long

Download Service Info HERE
