40-80 Tons of Ice Per 24hr
Automatic ICE™ Systems uses Vogt® P34HL, P34AL, P34A, P34FXL, and P34AXL model ice machines in our highest capacity, 40-80 ton per day, ice-making systems.
Click HERE to learn about The Vogt® Advantage

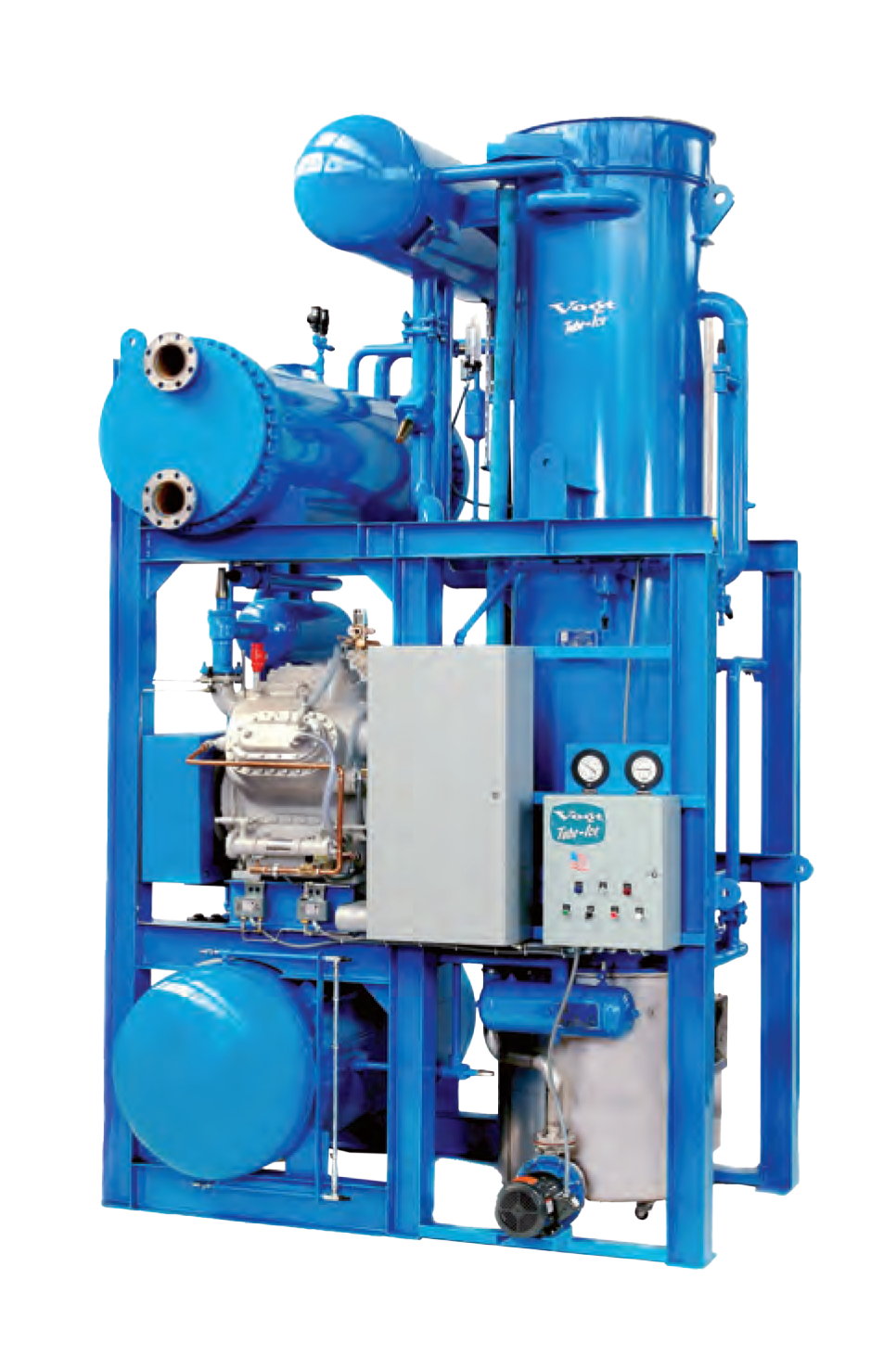

Vogt® P34HL Series
Replacing The P34FL Series model, the P34HL Series with a capacity of 50 tons of ice per day is a low-side Tube-Ice® machine designed to operate in perfect harmony with the Vogt® HFOPAK50 high-side or a central refrigeration system. The P34HL will provide you with many years of dependable service.
Heavy-duty industrial construction, automatic operation, energy efficiency, and the best warranty in the business make Vogt® Tube-Ice® machines the only “clear” choice for your ice-making needs.
P34HL Series Standard Features:
- 25-Year Evaporator Warranty
- R513a Refrigerant Operation
- Allen-Bradley PLC with thermocouples, pressure transducers, and multiple built-in safeties
- 10.1” wide HMI display with remote access capability*
- Up to 50 tons of ice per day
- Valve stations
- Voltage – 230v.,3p.,60hz.
- Control Voltage – 230v.,1p.,60hz
- UL 508A Industrial Control Panel
- Manufactured in accordance with A.S.M.E. code
- Standard ice length 1”
*Requires connection to Internet (ethernet connection)
P34HL Series Options:
• Voltage -460 v.,3p.,60hz.
• Voltage – 400v.,3p.,50hz.
• Voltage – 575v.,3p.,60hz.
• Cutter for 1-1/2” long ic
• All stainless steel
• “CE” Approval (400v, 50hz only)
• Canadian Registration Number (CRN)
Operating Conditions
The ice machine shall not be subjected to an atmospheric temperature lower than 50 0 F. (10 0 C.) nor higher than 90 0 F. (32 0 C.) without effect on performance. Water for condensing or ice making purposes shall be non-corrosive.
The water shall be at a constant pressure no less than 30lbs.
at the ice machine location. The condition of the water to make satisfactory ice shall be the responsibility of the purchaser.

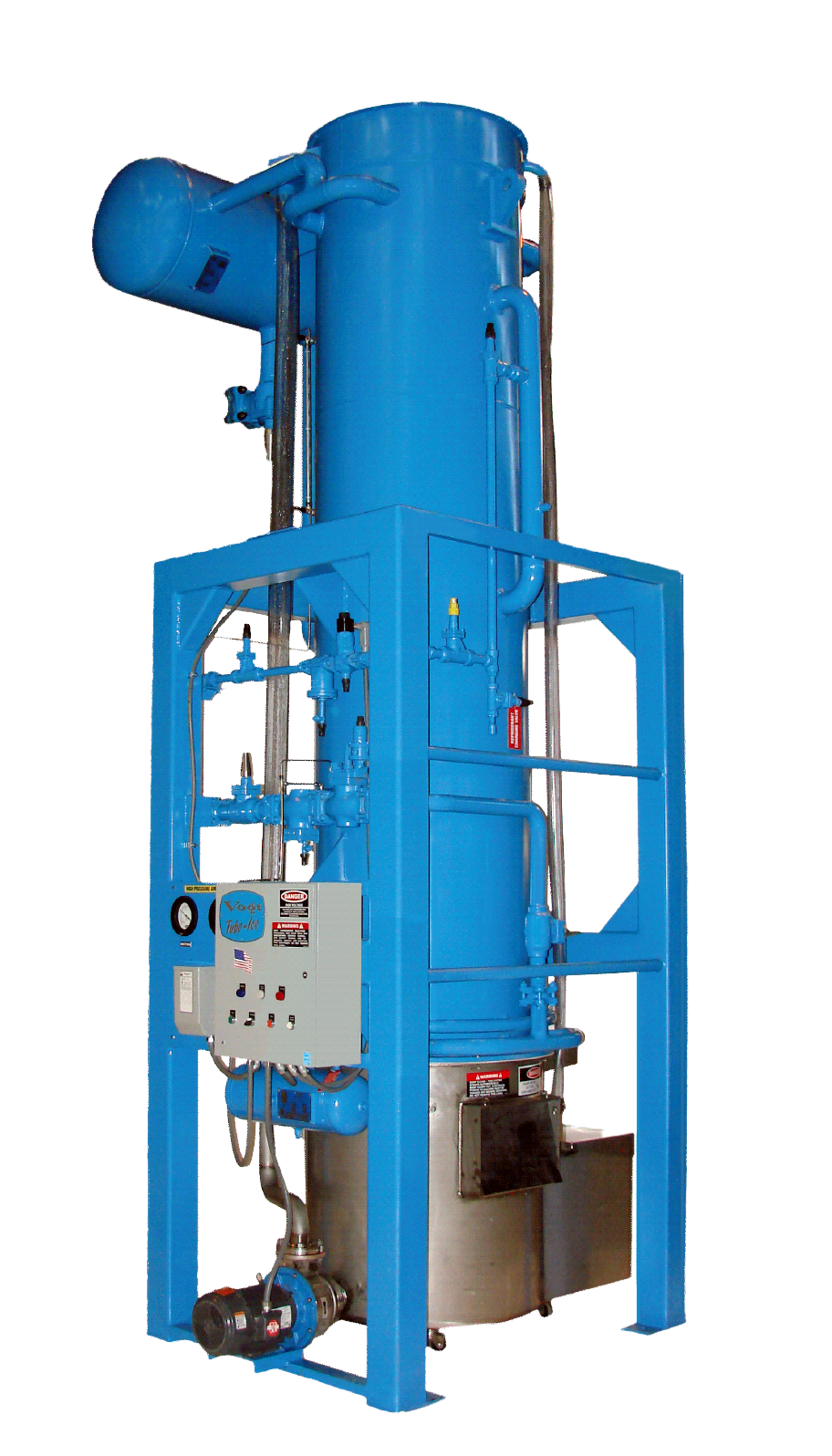

Vogt® P34AL Series
The P34AL Series with a capacity of 50 tons of ice per day is an ammonia low-side Tube-Ice® machine designed to operate with a dedicated ammonia high-side or on a central refrigeration system. The P34AL will provide you with many years of dependable service. Heavy-duty industrial construction, automatic operation, energy efficiency, and the best warranty in the business make Vogt® Tube-Ice® machines the only “clear” choice for your ice-making needs.
P34AL Series Standard Features:
- 25-Year Evaporator Warranty
- Up to 50 tons of ice per day
- Voltage – 230V., P., 60Hz.
- Control Voltage – 230V., 1P., 60Hz
- UL 508A Industrial Control Panel
- Ammonia flooded operation
- Manufactured in accordance with A.S.M.E. code
- Standard ice length 1″ P34AL
CONTACT A SALES REPRESENTATIVE
phone: (800) 325-3667
email: [email protected]
P34AL Series Options:
• Voltage -460V., 3P., 60Hz.
• Voltage – 400V., 3P., 50Hz.
• Voltage – 575V., 3P., 60Hz. 120V
• Controls PLC Control panel (programmable logic controller)
• Power monitor Cutter for 1-1/2″ long ice
• Cutter for crushed ice
• Cutterless option
• R.S. control valves
• Liquid overfeed
• All stainless steel
• “CE” Approval (400V, 50Hz only)
• Canadian Registration Number (CRN)
Download Spec Sheet HERE
Standard Ice Size:
- Tube-Ice approximately 7/8″ Diameter x 3/4″ Long (P34AL-1“ models)
- Tube-Ice approximately 1-1/8″ Diameter x 1″ Long (P34AL 1-1/4″ models)
- Tube-Ice approximately 1-3/8″ Diameter x 1″ Long (P34AL 1-1/2″ models)
- Crushed Ice 3/16″ to 1/4″ Thick on all models (approximately 32 lbs./cubic foot)
Download Service Info HERE
Vogt® P34A Series
The Vogt® P34A Series with a capacity of 50 tons of ice per day provides an alternative for producing large quantities of ice without the need of a central refrigeration plant. The P34A is a self-contained water-cooled machine for operation with ammonia and will provide you with many years of dependable service. Made with heavy-duty industrial construction, automatic operation, energy efficiency, and the best warranty in the business.
P34A Series Standard Features:
- Self-Contained Packaged Unit
- Factory Tested and Certified
- 25-Year Evaporator Warranty
- Voltage – 460V., 3P., 60Hz.
- Control Voltage – 230V., 1P., 60Hz.
- UL 508A Industrial Control Panel
- Compressor Soft Start
- Ammonia Refrigerant
- Mycom Compressor Standard
- Water-Cooled Condenser
CONTACT A SALES REPRESENTATIVE
phone: (800) 325-3667
email: [email protected]
P34A/P34F Series Options:
• Voltage – 460V., 3P., 60Hz.
• Voltage – 400V., 3P., 50Hz.
• Voltage – 575V., 3P., 60Hz.
• 120V Controls
• PLC Control panel (programmable logic controller)
• Power monitor
• Cutter for 1-1/2″ long ice
• Cutter for crushed ice
• All stainless steel
• “CE” Approval (400V, 50Hz only)
• Canadian Registration Number (CRN)
• R22 Operation
• R507 Operation

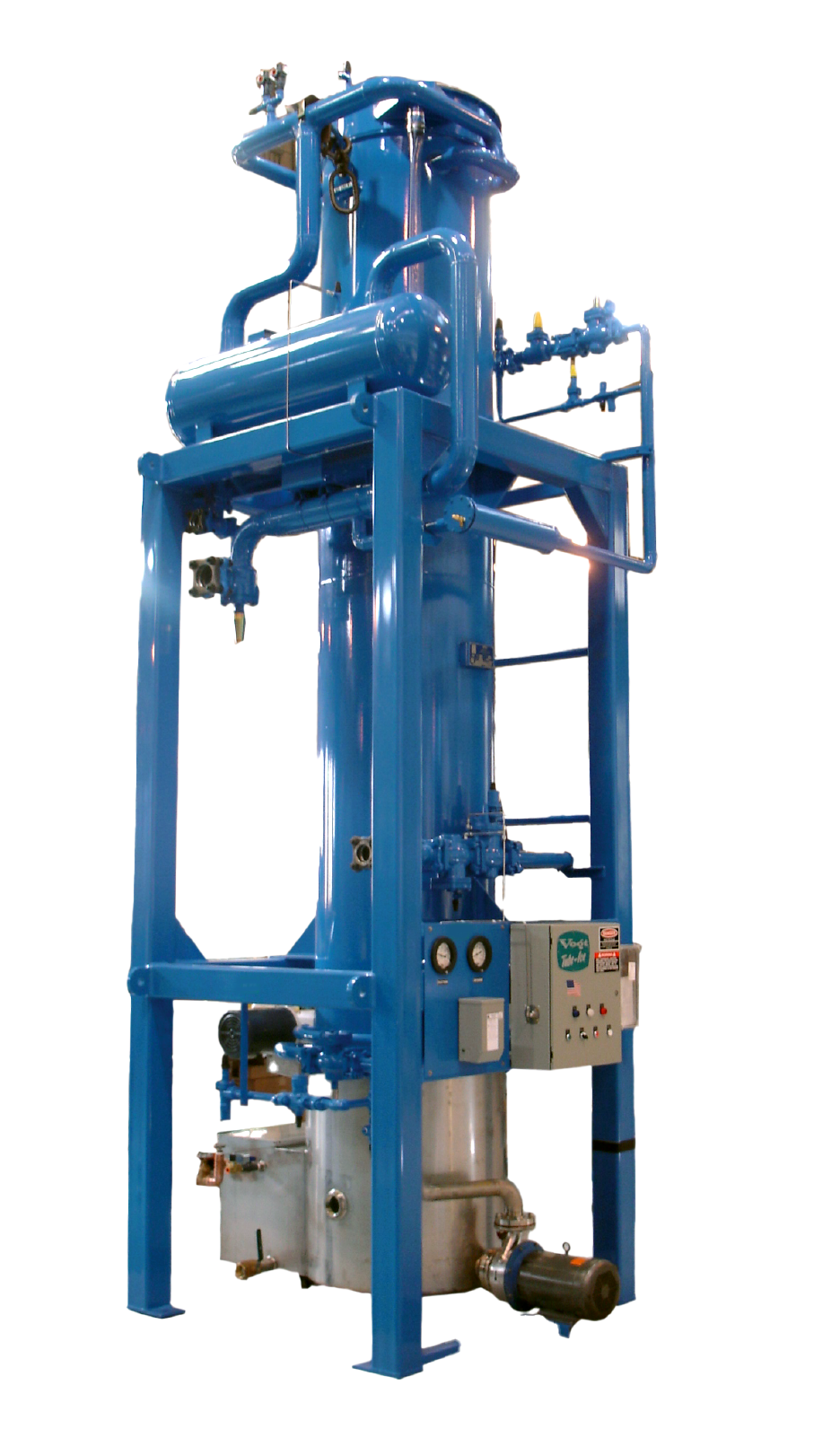

Vogt® P34FXL Series
The P34FXL Series with a capacity of 80 tons of ice per day is a low-side Tube-Ice® machine designed to operate with a dedicated freon high-side or on a central refrigeration system. The P34FXL will provide you with many years of dependable service. Heavy-duty industrial construction, automatic operation, energy efficiency, and the best warranty in the business make Vogt® Tube-Ice® machines the perfect choice for your ice-making needs.
P34FXL Series Standard Features:
- 25-Year Evaporator Warranty
- Up to 80 tons of ice per day
- Voltage – 230V., 3P., 60Hz.
- Control Voltage – 230V., 1P., 60Hz
- UL 508A Industrial Control Panel
- Manufactured in accordance with A.S.M.E. code
- Standard ice length 1″ P34FL
CONTACT A SALES REPRESENTATIVE
phone: (800) 325-3667
email: [email protected]
P34FXL Series Options:
• Voltage – 230V., 3P., 60Hz. (P34A only)
• Voltage – 400V., 3P., 50Hz.
• Voltage – 200V., 3P., 50Hz. (P34A only)
• Voltage – 575V., 3P., 60Hz.
• PLC Control panel (programmable logic controller)
• Power monitor
• Cutter for 1-1/2″ long ice
• Cutter for crushed ice
• Vilter compressor (required for CE)
• Stainless steel condenser tubes
• “CE” Approval (400V, 50Hz only)
• Canadian Registration Number (CRN)
Download Spec Sheet HERE
Standard Ice Size:
- Tube-Ice approximately 7/8″ Diameter x 3/4″ Long (P34-1“ models)
- Tube-Ice approximately 1 1/8″ Diameter x 1″ Long (P34 1-1/4″ models)
- Tube-Ice approximately 1-3/8″ Diameter x 1″ Long (P34 1-1/2″ models)
- Crushed Ice 3/16″ to 1/4″ Thick on all models (approximately 32 lbs./cubic foot)
Download Service Info HERE

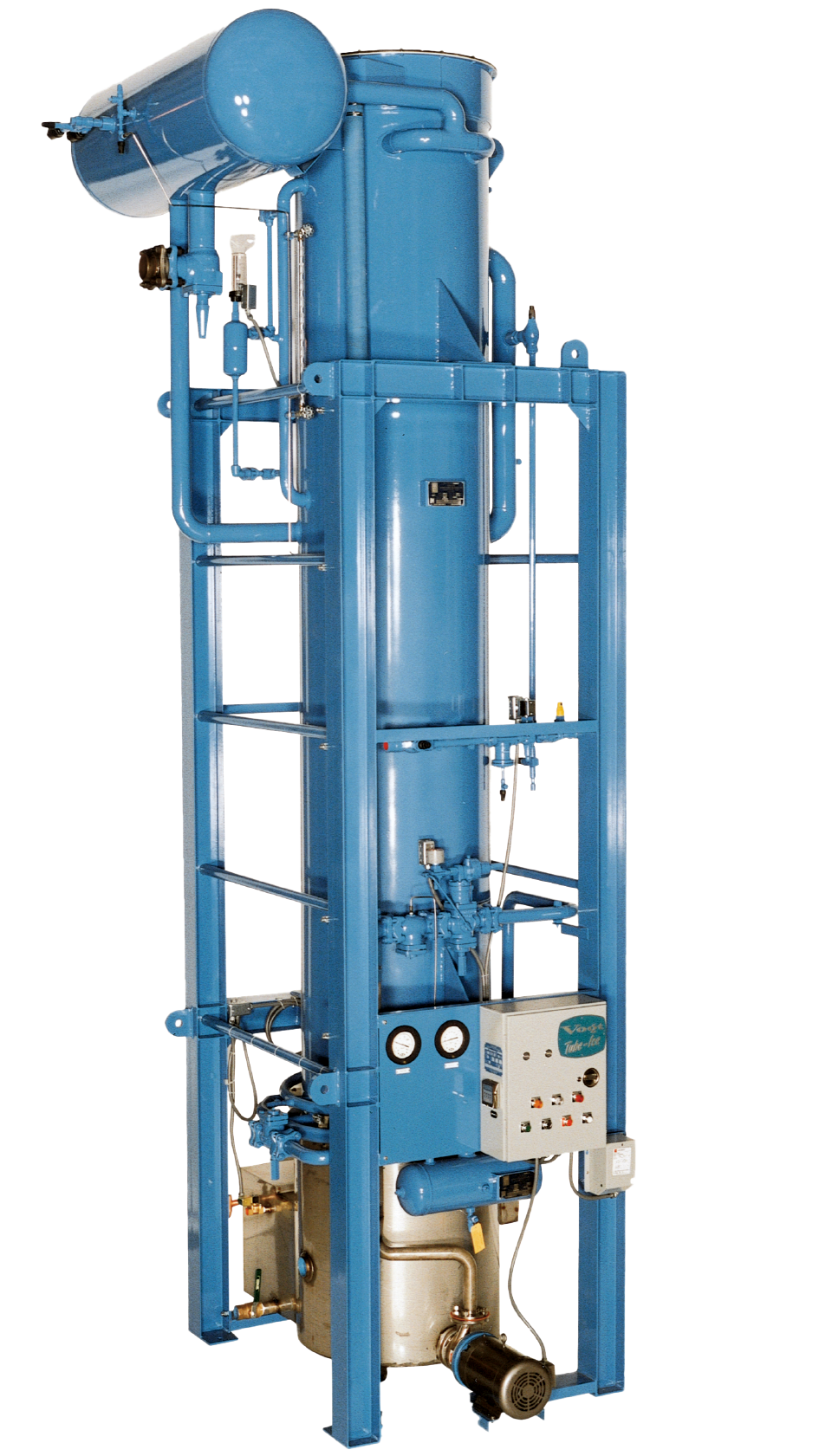

Vogt® P34AXL Series
The P34AXL Series with a capacity of 80 tons of ice per day is an ammonia low-side Tube-Ice® machine designed to operate with a dedicated ammonia high-side or on a central refrigeration system. The Vogt® P34AXL will provide you with many years of dependable service. Heavy-duty industrial construction, automatic operation, energy efficiency, and the best warranty in the business.
P34AXL Series Standard Features:
- 25-Year Evaporator Warranty
- Up to 80 tons of ice per day
- Voltage – 230V., 3P., 60Hz.
- Control Voltage – 230V., 1P., 60Hz
- UL 508A Industrial Control Panel
- Ammonia flooded operation
- Manufactured in accordance with A.S.M.E. code
- Standard ice length 1″
CONTACT A SALES REPRESENTATIVE
phone: (800) 325-3667
email: [email protected]
P34AXL Series Options:
• Voltage – 460V., 3P., 60Hz.
• Voltage – 400V., 3P., 50Hz.
• Voltage – 575V., 3P., 60Hz.
• 120V Controls
• PLC Control panel (programmable logic controller)
• Power monitor
• Cutter for 1-1/2″ long ice
• Cutter for crushed ice
• R.S. control valves
• Liquid overfeed
• All stainless steel
• “CE” Approval (400V, 50Hz only)
• Canadian Registration Number (CRN)
