Ice Bag Bailing Equipment
Coalza RS400-E packaging machinery
The vertical packaging machines of the Coalza RS series, model 400-E, are specifically designed to form and fill ice cube bags. The RS series is characterized by its robustness and ability, as well as its simple handling and touchscreen-based machine configuration. The machine makes the bag starting from a flat sheet of polyethylene in a coil. The packaging machine incorporates a double elevator to raise the bags, an acceleration belt, a motorized unwinder, a coil elevator, a rectangular-section tube format, an English folding system, and punching of the handle in the bag. The machine can be accompanied by a series of accessories, such as bag extractor tape, a thermal-printing code to print dates or batches, etc.
Max width of Bag: 17.7″
Dimensions: 67.8″ x 80.6″ x 121.6″
Material Bag: Polyethylene, polypropylene or complex heat-sealable materials
Maximum Speed: between 5 and 6 bags / min
CONTACT A SALES REPRESENTATIVE
phone: (800) 325-3667
email: [email protected]

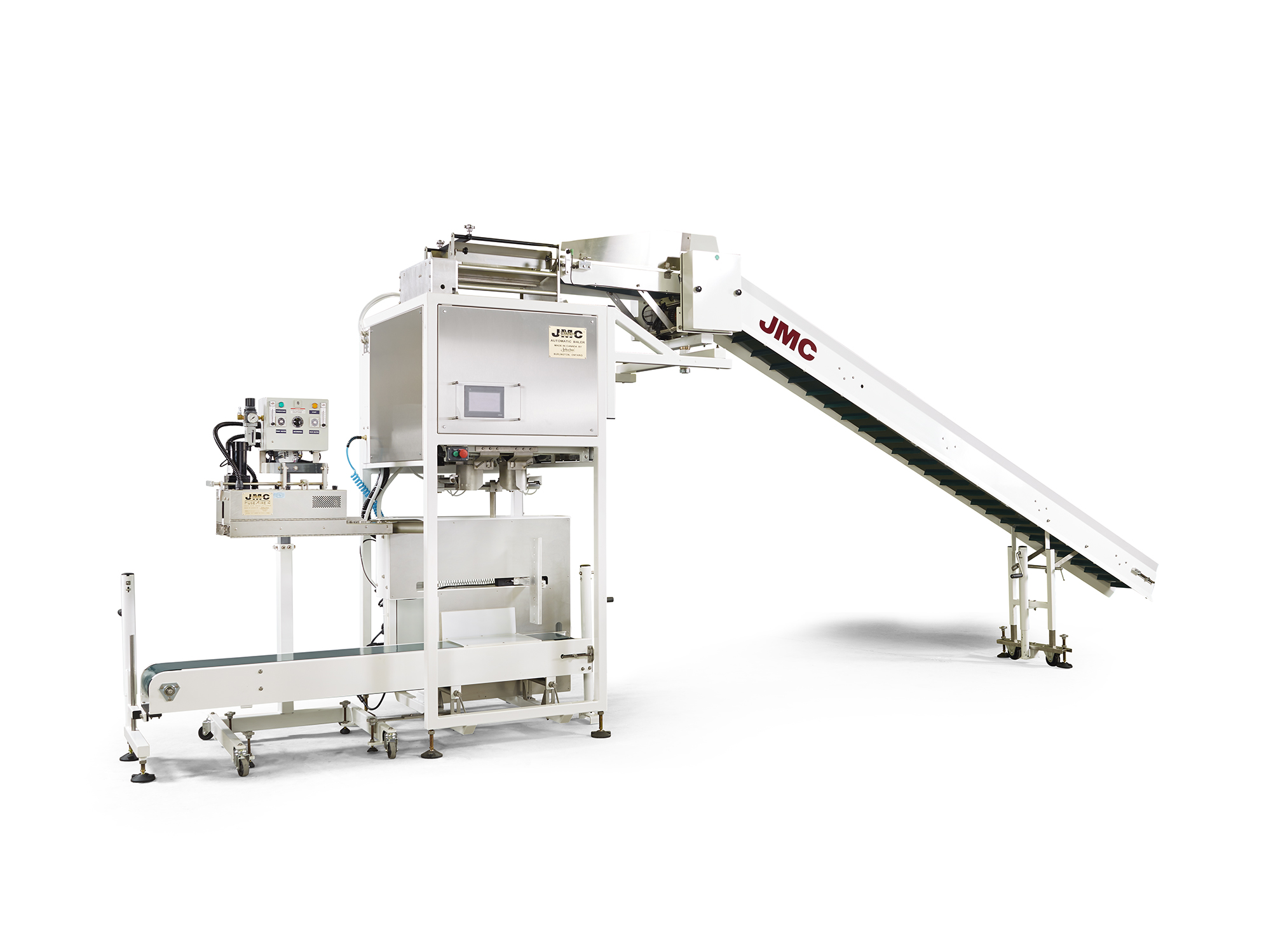

JMC Master Ice Baler
Options
• JMC Space Saver Incline Conveyor
• JMC FuseAire 4 Hot Air Sealer (trimmer available)
• JMC Bale Kicker
• Spare Parts Kit
• Mobility Kit
• Stainless Steel frame, conveyor and components
• Bypass system with conveyor and chute
Automatic Master Baling of various types and sizes of pre-packaged ice products. Accommodates product bags with a standard width and adjustable length from manual and automated packaging lines. Consider the optional JMC FuseAire 4 Hot Air Sealer for a reliable, trouble-free Automatic Master Baling system.
Features
• OMRON color touch screen
• OMRON PLC
• 4 standard fixed-width magazine sides – choose between 7” to 10” model type
• Bag inflation system
• Incline and accelerator conveyor
• Infeed mechanism
• Bale pusher with bag transport grippers
• Take-away conveyor
• Fully approved electrical control panel with interlock
• Swingaway control panel
• Stainless steel panels and product contact surfaces
• Epoxy powder baked finish
• Levelling feet
• “In-line” or “reversed” configuration available
• Compact Frame available (consult factory for dimensions)
• Bag Sense: “No bag dump”
CONTACT A SALES REPRESENTATIVE
phone: (800) 325-3667
email: [email protected]
Matthiesen Baler
The Matthiesen Baler is an essential piece of equipment for your bagging line. This baler allows you to bale various types of pre-packaged products into a single unit. Flexibility is key here!
Standard Features
• Corrosion resistant parts either stainless steel, aluminum or high
density polyethylene
• UL certified control panel
• Programmable Logic Control, with user friendly touch screen and help menu
• Completely adjustable for quick bag change
• Production counter
• Fully automatic
• 5 to 16 lb bag, typical ice application (consult factory for other product type)
• Bag detector (no bag, no dump)
• Pneumatic operation
• Accepts ring bag or heatseal closure
• Adjustable conveyor height
• Bag inflation system
• Take away conveyor
• Low noise level
• Leveling feet
Options
• Bag closer (ring bag on heatseal)
• Casters with locks
• Reverse incline for space savings (get dimensions for reverse)
• Cold Room Kit
• Factory start-up available
• Other electrical available
