Approx Daily Capacity: 74,000-140,000 LBS
Standard Voltage (other 3 phase voltage available): 460, 3p, 60Hz
Overall Dimensions: 6’7″ X 6′-1″ X 14′-6″or 16′ (Height varies w/ tube size)
Shipping Weight: 10,000 LBS
Refrigerant: R-717, Ammonia
Description

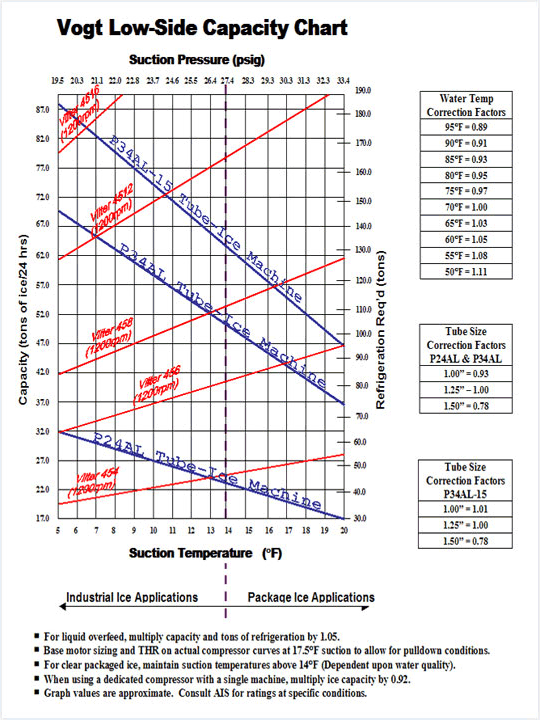

The Vogt P34AL Tube-Ice Machine is a “Low Side” ice machine for ammonia operation. A Low Side ice machine includes the ice making and water tank/cutter portions of an icemaking system. It is designed to be attached to either a central or designated refrigeration system and can be engineered for multiple machine operation. The AIS A34-6-125-3014 High Side Refrigeration System is engineered to perfectly compliment the Vogt P34AL ice machine. AIS exclusive High Side Refrigeration Systems are designed to obtain the maximum production of quality Tube-Ice, for the packaged ice industry, at minimal energy costs.For industrial ice, refer to the Low-side Capacity Chart.. This graph reflects the P34AL operating on a central refrigeration system.
